1. Three.js 材质系统：类型对比与选择指南

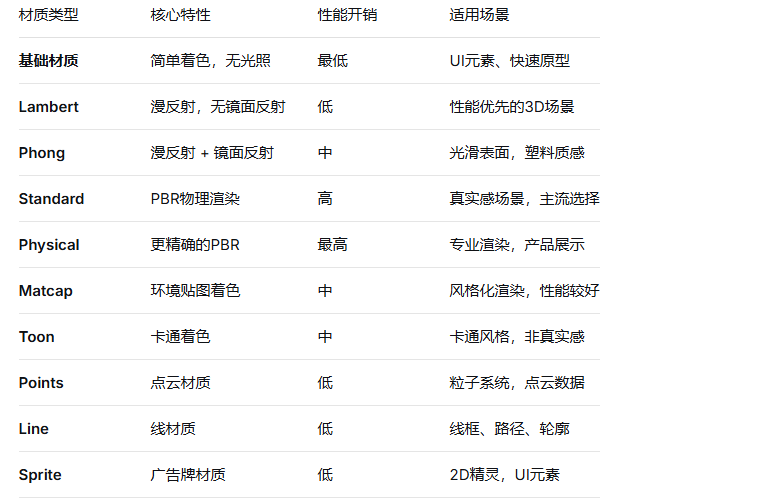

1.1. 材质系统概览

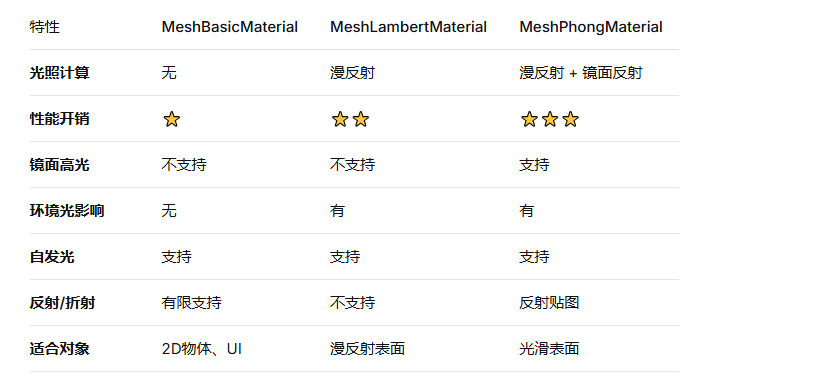

1.2. 详细材质对比表

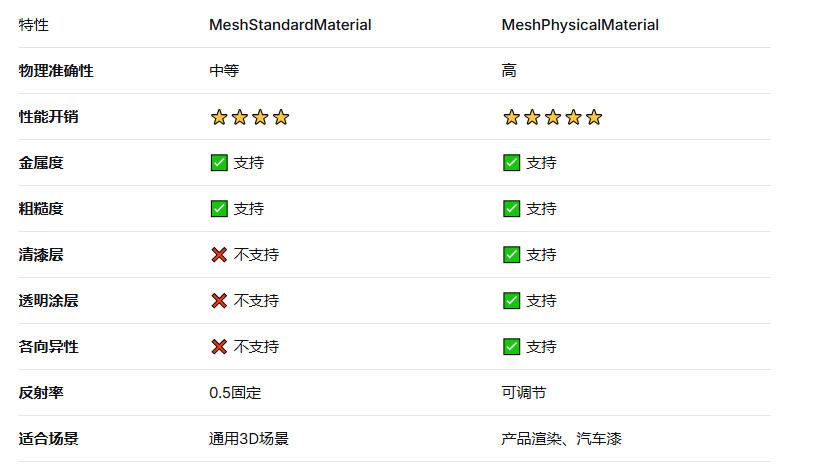

1.3. PBR材质对比

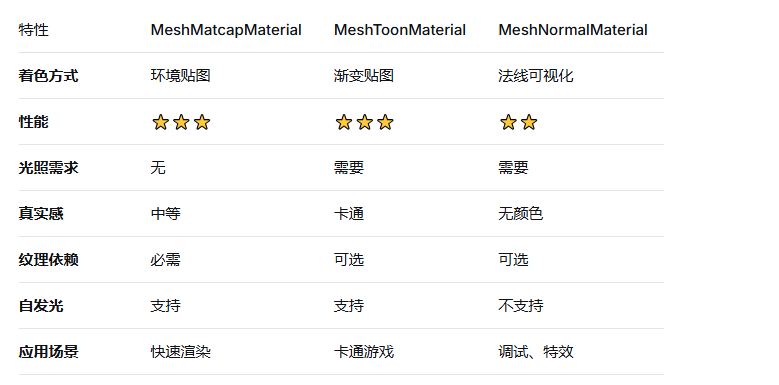

1.4. 风格化材质对比

1.5. 材质属性详细对比

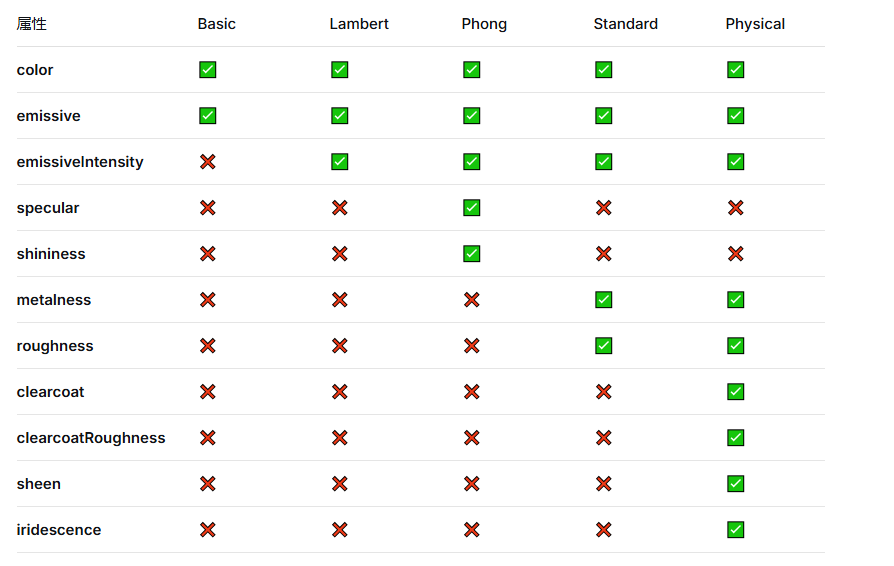

1.5.1. 光照相关属性

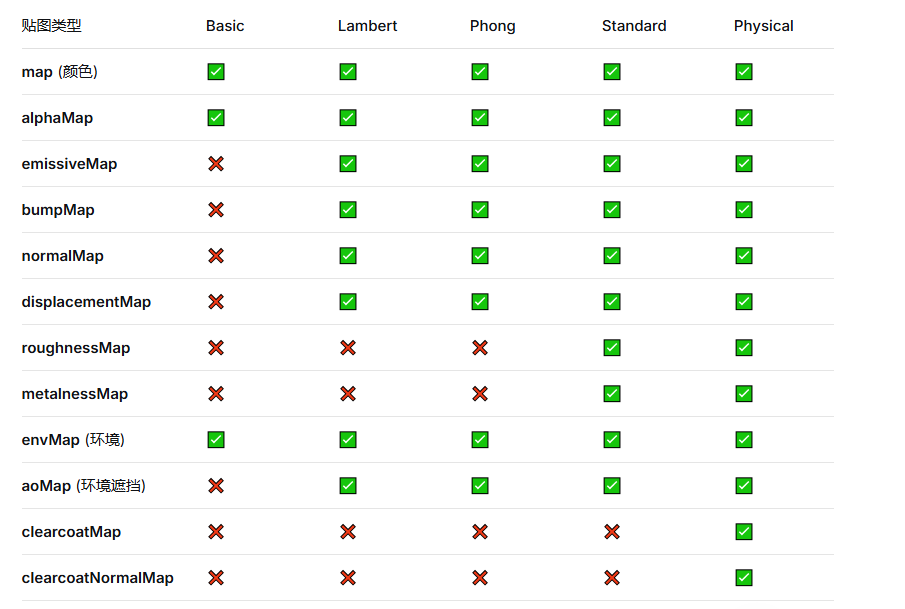

1.5.2. 纹理贴图支持

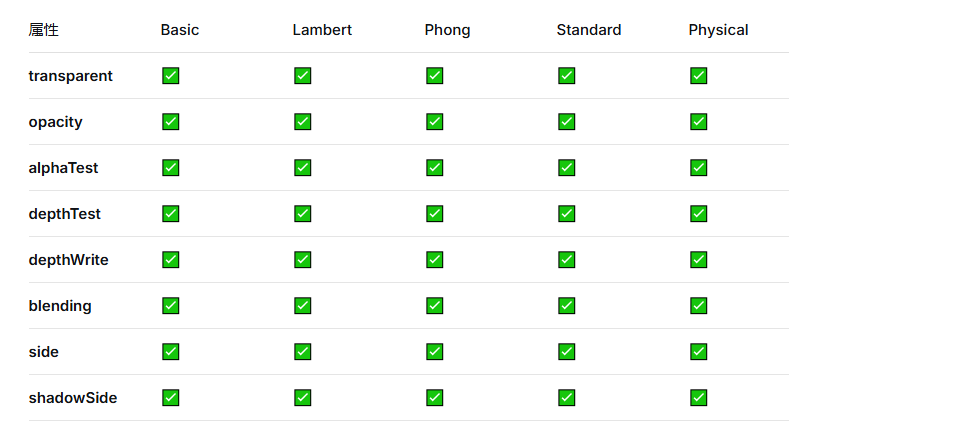

1.5.3. 透明与混合

1.6. 材质选择决策指南

1.6.1. 决策流程图

javascript

class MaterialSelector {
  static selectMaterial(requirements) {
    const {
      needsLighting = true,
      needsReflections = false,
      performanceCritical = false,
      style = 'realistic',
      hasTextures = false,
      textureTypes = [],
      platform = 'desktop'
    } = requirements;

    // 决策逻辑
    if (!needsLighting) {
      return 'MeshBasicMaterial'; // 无光照需求
    }

    if (performanceCritical) {
      if (needsLighting && !needsReflections) {
        return 'MeshLambertMaterial'; // 性能优先
      }
      return 'MeshPhongMaterial'; // 平衡选择
    }

    if (style === 'cartoon') {
      return 'MeshToonMaterial'; // 卡通风格
    }

    if (style === 'matcap') {
      return 'MeshMatcapMaterial'; // 风格化
    }

    if (style === 'realistic') {
      if (platform === 'mobile' || performanceCritical) {
        return 'MeshStandardMaterial'; // 移动端或性能敏感
      }

      // 检查是否需要Physical的高级特性
      if (textureTypes.includes('clearcoat') ||
          textureTypes.includes('sheen') ||
          requirements.needsIridescence) {
        return 'MeshPhysicalMaterial'; // 需要高级PBR特性
      }

      return 'MeshStandardMaterial'; // 默认PBR
    }

    // 默认选择
    return 'MeshStandardMaterial';
  }

  // 示例使用
  static exampleSelections() {
    const scenarios = [
      {
        name: '移动端游戏',
        requirements: {
          needsLighting: true,
          performanceCritical: true,
          style: 'realistic',
          platform: 'mobile'
        },
        result: 'MeshStandardMaterial'
      },
      {
        name: '产品展示',
        requirements: {
          needsLighting: true,
          needsReflections: true,
          style: 'realistic',
          textureTypes: ['clearcoat', 'roughness'],
          platform: 'desktop'
        },
        result: 'MeshPhysicalMaterial'
      },
      {
        name: 'UI元素',
        requirements: {
          needsLighting: false,
          performanceCritical: true
        },
        result: 'MeshBasicMaterial'
      },
      {
        name: '卡通风格游戏',
        requirements: {
          needsLighting: true,
          style: 'cartoon',
          performanceCritical: false
        },
        result: 'MeshToonMaterial'
      }
    ];

    return scenarios;
  }
}

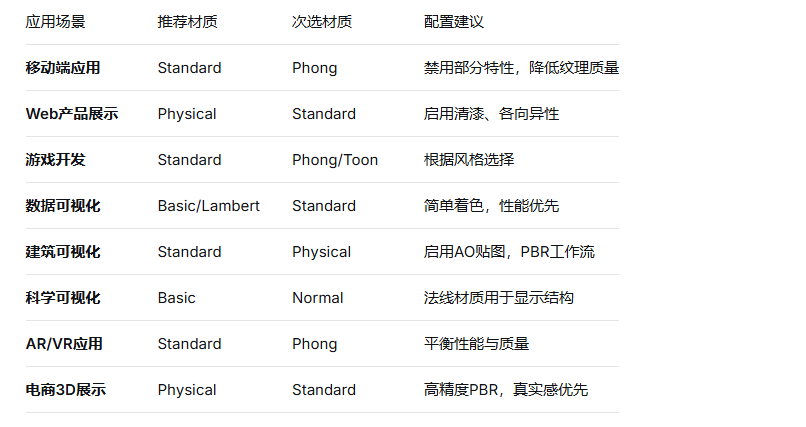

1.6.2. 常见场景推荐

1.6.3. 性能优化指南

javascript

class MaterialOptimizer {
  // 根据平台优化材质
  static optimizeForPlatform(material, platform) {
    const optimizedMaterial = material.clone();

    switch(platform) {
      case 'mobile':
        // 移动端优化
        optimizedMaterial.precision = 'mediump';
        optimizedMaterial.vertexColors = false;

        if (optimizedMaterial instanceof THREE.MeshStandardMaterial) {
          optimizedMaterial.envMapIntensity = 0.5;
          optimizedMaterial.roughness = 0.8; // 降低计算
        }
        break;

      case 'desktop':
        // 桌面端可以启用更多特性
        if (optimizedMaterial instanceof THREE.MeshPhysicalMaterial) {
          optimizedMaterial.clearcoat = 1.0;
          optimizedMaterial.clearcoatRoughness = 0.1;
        }
        break;

      case 'vr':
        // VR需要保持高帧率
        optimizedMaterial.precision = 'highp';
        optimizedMaterial.dithering = true; // 减少色带
        break;
    }

    return optimizedMaterial;
  }

  // 性能分级配置
  static getPerformanceProfile(level) {
    const profiles = {
      low: {
        material: 'MeshLambertMaterial',
        textures: {
          maxSize: 512,
          mipmaps: false,
          anisotropic: 1
        },
        shadows: false,
        antialias: false
      },
      medium: {
        material: 'MeshPhongMaterial',
        textures: {
          maxSize: 1024,
          mipmaps: true,
          anisotropic: 2
        },
        shadows: true,
        antialias: false
      },
      high: {
        material: 'MeshStandardMaterial',
        textures: {
          maxSize: 2048,
          mipmaps: true,
          anisotropic: 4
        },
        shadows: true,
        antialias: true
      },
      ultra: {
        material: 'MeshPhysicalMaterial',
        textures: {
          maxSize: 4096,
          mipmaps: true,
          anisotropic: 16
        },
        shadows: true,
        antialias: true,
        postprocessing: true
      }
    };

    return profiles[level] || profiles.medium;
  }
}

1.7. 材质实例与配置示例

javascript

const MaterialTemplates = {
  // 基础材质 - UI元素
  basicUI: new THREE.MeshBasicMaterial({
    color: 0xffffff,
    transparent: true,
    opacity: 0.9,
    side: THREE.DoubleSide
  }),

  // Lambert - 性能优先的3D物体
  lambertPerformance: new THREE.MeshLambertMaterial({
    color: 0x808080,
    emissive: 0x000000,
    emissiveIntensity: 0.5,
    flatShading: false  // 设为true可提升性能但质量降低
  }),

  // Phong - 塑料/光滑表面
  phongPlastic: new THREE.MeshPhongMaterial({
    color: 0xffffff,
    specular: 0x111111,
    shininess: 30,
    reflectivity: 0.5,
    combine: THREE.MixOperation
  }),

  // Standard - 通用PBR
  standardGeneric: new THREE.MeshStandardMaterial({
    color: 0xffffff,
    metalness: 0.0,     // 0=非金属, 1=金属
    roughness: 0.5,     // 0=光滑, 1=粗糙
    envMapIntensity: 1.0,
    aoMapIntensity: 1.0
  }),

  // Standard - 金属材质
  standardMetal: new THREE.MeshStandardMaterial({
    color: 0xcccccc,
    metalness: 0.9,
    roughness: 0.1,
    envMapIntensity: 2.0
  }),

  // Physical - 汽车漆
  physicalCarPaint: new THREE.MeshPhysicalMaterial({
    color: 0xff0000,
    metalness: 0.0,
    roughness: 0.1,
    clearcoat: 1.0,
    clearcoatRoughness: 0.0,
    sheen: 0.5,
    sheenColor: 0xff0000,
    sheenRoughness: 0.1
  }),

  // Physical - 清漆木材
  physicalVarnishedWood: new THREE.MeshPhysicalMaterial({
    color: 0x8b4513,
    metalness: 0.0,
    roughness: 0.7,
    clearcoat: 0.3,
    clearcoatRoughness: 0.2,
    anisotropy: 0.8,
    anisotropyRotation: Math.PI / 4
  }),

  // Toon - 卡通风格
  toonCartoon: new THREE.MeshToonMaterial({
    color: 0x00aaff,
    gradientMap: this.createGradientTexture(),
    shininess: 100,
    specular: 0x444444
  }),

  // Matcap - 风格化
  matcapStylized: new THREE.MeshMatcapMaterial({
    matcap: this.loadMatcapTexture('metal'),
    color: 0xffffff
  }),

  // 透明玻璃
  transparentGlass: new THREE.MeshPhysicalMaterial({
    color: 0xffffff,
    metalness: 0.0,
    roughness: 0.0,
    transmission: 0.9,      // 透光率
    thickness: 0.5,         // 玻璃厚度
    ior: 1.5,               // 折射率
    specularIntensity: 1.0,
    specularColor: 0xffffff
  })
};

1.7.1. 纹理配置最佳实践

javascript

class TextureConfiguration {
  // 根据材质类型配置纹理
  static configureTextures(material, textureConfig) {
    const {
      colorMap,
      normalMap,
      roughnessMap,
      metalnessMap,
      aoMap,
      emissiveMap,
      displacementMap
    } = textureConfig;

    // 公共纹理设置
    const applyTextureSettings = (texture) => {
      if (!texture) return;

      texture.wrapS = THREE.RepeatWrapping;
      texture.wrapT = THREE.RepeatWrapping;
      texture.anisotropy = 4; // 各向异性过滤
      texture.minFilter = THREE.LinearMipmapLinearFilter;
      texture.magFilter = THREE.LinearFilter;

      texture.needsUpdate = true;
    };

    // 应用纹理到材质
    if (colorMap) {
      material.map = colorMap;
      applyTextureSettings(colorMap);
    }

    if (normalMap && material.normalMap !== undefined) {
      material.normalMap = normalMap;
      material.normalScale = new THREE.Vector2(1, 1);
      applyTextureSettings(normalMap);
    }

    if (roughnessMap && material.roughnessMap !== undefined) {
      material.roughnessMap = roughnessMap;
      applyTextureSettings(roughnessMap);
    }

    if (metalnessMap && material.metalnessMap !== undefined) {
      material.metalnessMap = metalnessMap;
      applyTextureSettings(metalnessMap);
    }

    if (aoMap && material.aoMap !== undefined) {
      material.aoMap = aoMap;
      applyTextureSettings(aoMap);
    }

    if (emissiveMap && material.emissiveMap !== undefined) {
      material.emissiveMap = emissiveMap;
      material.emissiveIntensity = 1.0;
      applyTextureSettings(emissiveMap);
    }

    if (displacementMap && material.displacementMap !== undefined) {
      material.displacementMap = displacementMap;
      material.displacementScale = 0.1;
      applyTextureSettings(displacementMap);
    }

    return material;
  }

  // 纹理压缩建议
  static getTextureCompressionSettings(platform) {
    const settings = {
      desktop: {
        format: THREE.RGBAFormat,
        type: THREE.UnsignedByteType,
        compression: THREE.NoCompression,
        maxSize: 4096
      },
      mobile: {
        format: THREE.RGBAFormat,
        type: THREE.HalfFloatType,
        compression: THREE.CompressedTexture,
        maxSize: 2048
      },
      webgl1: {
        format: THREE.RGBFormat, // 减少内存
        type: THREE.UnsignedByteType,
        compression: THREE.NoCompression,
        maxSize: 1024
      }
    };

    return settings[platform] || settings.desktop;
  }
}

1.8. 性能与内存管理

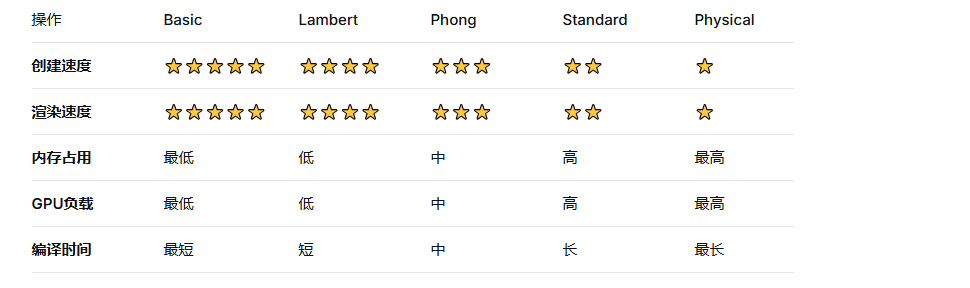

1.8.1. 材质性能评分

1.8.2. 材质池与重用

javascript

class MaterialPool {
  constructor() {
    this.pool = new Map();
    this.stats = {
      created: 0,
      reused: 0,
      active: 0
    };
  }

  // 获取或创建材质
  getMaterial(config) {
    const key = this.generateKey(config);

    if (this.pool.has(key)) {
      this.stats.reused++;
      return this.pool.get(key);
    }

    // 创建新材质
    const material = this.createMaterial(config);
    this.pool.set(key, material);
    this.stats.created++;
    this.stats.active++;

    return material;
  }

  // 生成材质配置的唯一键
  generateKey(config) {
    return JSON.stringify({
      type: config.type,
      color: config.color?.getHex(),
      map: config.map?.uuid,
      metalness: config.metalness,
      roughness: config.roughness,
      transparent: config.transparent
    });
  }

  // 创建材质实例
  createMaterial(config) {
    switch(config.type) {
      case 'basic':
        return new THREE.MeshBasicMaterial(config);
      case 'lambert':
        return new THREE.MeshLambertMaterial(config);
      case 'phong':
        return new THREE.MeshPhongMaterial(config);
      case 'standard':
        return new THREE.MeshStandardMaterial(config);
      case 'physical':
        return new THREE.MeshPhysicalMaterial(config);
      default:
        return new THREE.MeshStandardMaterial(config);
    }
  }

  // 清理未使用的材质
  cleanup(unusedTimeout = 60000) { // 60秒
    const now = Date.now();

    for (const [key, material] of this.pool.entries()) {
      if (material.userData.lastUsed &&
          now - material.userData.lastUsed > unusedTimeout) {

        material.dispose();
        this.pool.delete(key);
        this.stats.active--;
      }
    }
  }

  // 获取性能统计
  getStats() {
    return {
      ...this.stats,
      poolSize: this.pool.size,
      memoryEstimate: this.estimateMemoryUsage()
    };
  }

  estimateMemoryUsage() {
    let total = 0;
    for (const material of this.pool.values()) {
      // 粗略估算，实际会更复杂
      total += 1024; // 每个材质约1KB基础开销

      if (material.map) total += 1024 * 10; // 纹理额外开销
      if (material.normalMap) total += 1024 * 10;
      // 其他纹理...
    }

    return `${(total / 1024).toFixed(1)} KB`;
  }
}

1.9. 调试与问题排查

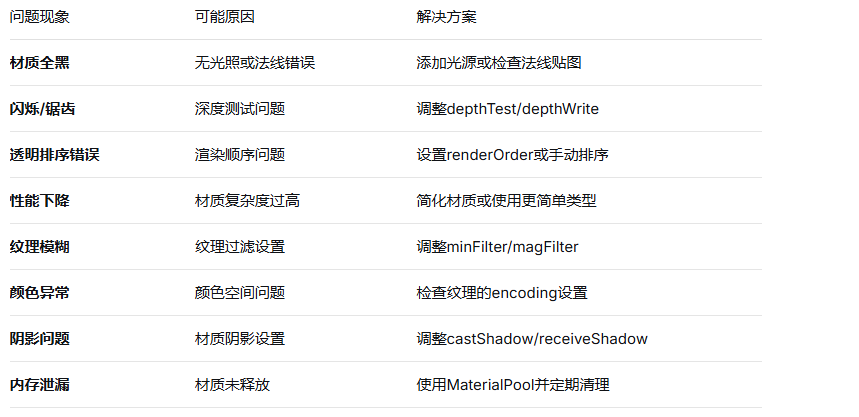

1.9.1. 常见材质问题与解决方案

1.10. 材质调试工具

javascript

class MaterialDebugger {
  constructor(mesh) {
    this.mesh = mesh;
    this.originalMaterial = mesh.material;
    this.debugModes = new Map();

    this.initDebugModes();
  }

  initDebugModes() {
    // 法线可视化
    this.debugModes.set('normal', new THREE.MeshNormalMaterial());

    // 线框模式
    this.debugModes.set('wireframe', new THREE.MeshBasicMaterial({
      wireframe: true,
      color: 0x00ff00
    }));

    // UV可视化
    this.debugModes.set('uv', new THREE.MeshBasicMaterial({
      map: this.createUVTexture(),
      side: THREE.DoubleSide
    }));

    // 深度可视化
    this.debugModes.set('depth', new THREE.MeshDepthMaterial());

    // 面索引可视化
    this.debugModes.set('face', this.createFaceIndexMaterial());
  }

  setDebugMode(mode) {
    if (mode === 'off') {
      this.mesh.material = this.originalMaterial;
    } else if (this.debugModes.has(mode)) {
      this.mesh.material = this.debugModes.get(mode);
    }
  }

  createUVTexture() {
    const canvas = document.createElement('canvas');
    canvas.width = 256;
    canvas.height = 256;
    const ctx = canvas.getContext('2d');

    // 绘制UV网格
    ctx.strokeStyle = '#ff0000';
    ctx.lineWidth = 2;

    for (let i = 0; i <= 10; i++) {
      const pos = i * 25.6;
      ctx.beginPath();
      ctx.moveTo(pos, 0);
      ctx.lineTo(pos, 256);
      ctx.stroke();

      ctx.beginPath();
      ctx.moveTo(0, pos);
      ctx.lineTo(256, pos);
      ctx.stroke();
    }

    const texture = new THREE.CanvasTexture(canvas);
    return texture;
  }

  // 分析材质性能
  analyzePerformance() {
    const material = this.mesh.material;
    const analysis = {
      type: material.type,
      textureCount: 0,
      shaderComplexity: 'low',
      memoryEstimate: 'unknown'
    };

    // 计算纹理数量
    const textureProperties = [
      'map', 'normalMap', 'roughnessMap', 'metalnessMap',
      'aoMap', 'emissiveMap', 'displacementMap', 'envMap'
    ];

    analysis.textureCount = textureProperties.filter(
      prop => material[prop]
    ).length;

    // 评估着色器复杂度
    if (material instanceof THREE.MeshBasicMaterial) {
      analysis.shaderComplexity = 'very low';
    } else if (material instanceof THREE.MeshLambertMaterial) {
      analysis.shaderComplexity = 'low';
    } else if (material instanceof THREE.MeshPhongMaterial) {
      analysis.shaderComplexity = 'medium';
    } else if (material instanceof THREE.MeshStandardMaterial) {
      analysis.shaderComplexity = 'high';
    } else if (material instanceof THREE.MeshPhysicalMaterial) {
      analysis.shaderComplexity = 'very high';
    }

    return analysis;
  }
}

1.11. 未来趋势与建议

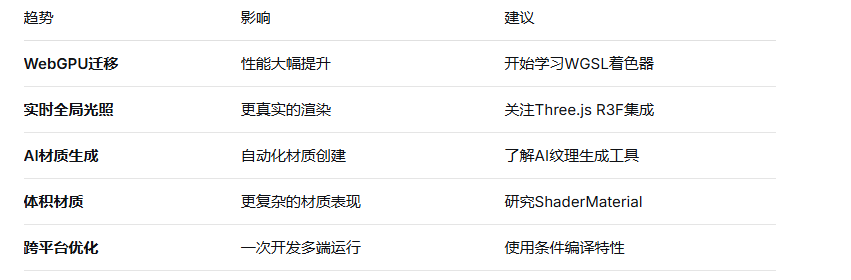

1.11.1. 材质技术发展

1.11.2.  项目中的材质策略

1. 早期开发：

   • 使用Basic/Lambert快速原型

   • 关注功能而非视觉效果

2. 中期优化：

   • 根据性能测试选择材质

   • 建立材质库和配置系统

3. 后期完善：

   • 使用Standard/Physical提升质量

   • 实施材质LOD系统

   • 优化内存和加载时间

4. 维护阶段：

   • 定期清理未使用材质

   • 监控性能变化

   • 更新到新版本API

1.11.3. 学习路径建议

1. 初学者：

   • 掌握Basic、Lambert、Phong

   • 理解光照基本原理

2. 中级开发者：

   • 熟练使用Standard Material

   • 掌握PBR工作流

   • 学习纹理优化

3. 高级开发者：

   • 深入Physical Material

   • 掌握自定义ShaderMaterial

   • 实现材质管理系统

这个综合指南应该能帮助你在不同场景下做出合适的材质选择。记住最重要的原则是：根据实际需求平衡视觉效果和性能开销。
